Interface for transformable entities. More...

#include <ITransformable.h>

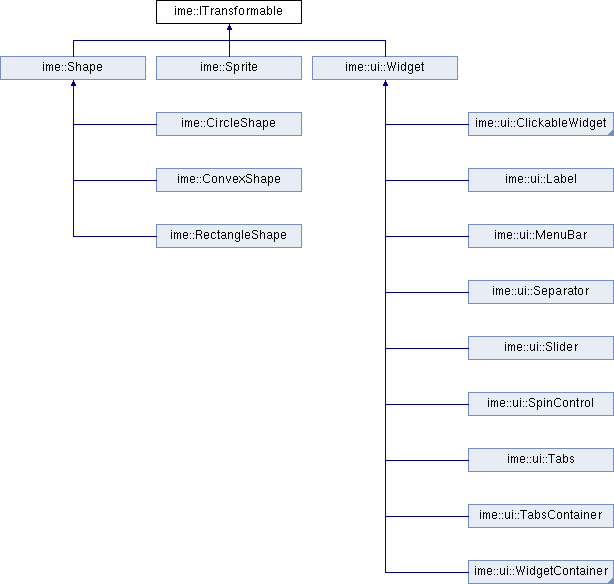

Inheritance diagram for ime::ITransformable:

Public Member Functions
virtual void	setPosition (float x, float y)=0
	Set the position of the object. More...

virtual void	setPosition (const Vector2f &position)=0
	Set the position of the object. More...

virtual Vector2f	getPosition () const =0
	Get the position of the object. More...

virtual void	setRotation (float angle)=0
	Set the orientation of the object. More...

virtual void	rotate (float angle)=0
	Rotate the object. More...

virtual float	getRotation () const =0
	Get the orientation of the object, in degrees. More...

virtual void	setScale (float factorX, float factorY)=0
	Set the scale factors of the object. More...

virtual void	setScale (const Vector2f &scale)=0
	Set the scale factor of the object. More...

virtual void	scale (float factorX, float factorY)=0
	Scale the object by an offset. More...

virtual void	scale (const Vector2f &offset)=0
	Scale the object by an offset. More...

virtual Vector2f	getScale () const =0
	Get the current scale of the object. More...

virtual void	setOrigin (float x, float y)=0
	Set the local origin of the object. More...

virtual void	setOrigin (const Vector2f &origin)=0
	Set the local origin of the object. More...

virtual Vector2f	getOrigin () const =0
	Get the local origin of the object. More...

virtual void	move (float offsetX, float offsetY)=0
	Move the object by a given offset. More...

virtual void	move (const Vector2f &offset)=0
	Move the object by a given offset. More...

virtual	~ITransformable ()=default
	Destructor. More...

Detailed Description

Interface for transformable entities.

Definition at line 35 of file ITransformable.h.

Constructor & Destructor Documentation

◆ ~ITransformable()

virtual ime::ITransformable::~ITransformable ( )

virtualdefault

Destructor.

Member Function Documentation

◆ getOrigin()

virtual Vector2f ime::ITransformable::getOrigin ( ) const

pure virtual

Get the local origin of the object.

Returns: Local origin of the object

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ getPosition()

virtual Vector2f ime::ITransformable::getPosition ( ) const

pure virtual

Get the position of the object.

Returns: Current position of the object

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ getRotation()

virtual float ime::ITransformable::getRotation ( ) const

pure virtual

Get the orientation of the object, in degrees.

Returns: Current rotation, in degrees

The rotation is always in the range [0, 360]

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ getScale()

virtual Vector2f ime::ITransformable::getScale ( ) const

pure virtual

Get the current scale of the object.

Returns: Current scale of the object

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ move() [1/2]

virtual void ime::ITransformable::move ( const Vector2f & offset )

pure virtual

Move the object by a given offset.

Parameters

offset Offset to apply

This function adds to the current position of the object, unlike setPosition which overwrites it

See also: setPosition

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ move() [2/2]

virtual void ime::ITransformable::move	(	float	offsetX,
		float	offsetY
	)

pure virtual

Move the object by a given offset.

Parameters

offsetX	Horizontal offset
offsetY	Vertical offset

This function adds to the current position of the object, unlike setPosition which overwrites it

See also: setPosition

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ rotate()

virtual void ime::ITransformable::rotate ( float angle )

pure virtual

Rotate the object.

Parameters

angle Angle of rotation, in degrees

This function adds to the current rotation of the object, unlike setRotation which overwrites it

See also: setRotation

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ scale() [1/2]

virtual void ime::ITransformable::scale ( const Vector2f & offset )

pure virtual

Scale the object by an offset.

Parameters

offset Offset to apply

This function multiplies the current scale of the object, unlike setScale which overwrites it

See also: setScale

Implemented in ime::Shape, ime::ui::Widget, and ime::Sprite.

◆ scale() [2/2]

virtual void ime::ITransformable::scale	(	float	factorX,
		float	factorY
	)

pure virtual

Scale the object by an offset.

Parameters

factorX	Horizontal scale factor
factorY	Vertical scale factor

This function multiplies the current scale of the object, unlike setScale which overwrites it

See also: setScale

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setOrigin() [1/2]

virtual void ime::ITransformable::setOrigin ( const Vector2f & origin )

pure virtual

Set the local origin of the object.

Parameters

origin New origin

The origin of an object defines the center point for all transformations (position, scale, rotation). The coordinates of this point must be relative to the top-left corner of the object, and ignore all transformations (position, scale, rotation). The default origin of a transformable object is (0, 0)

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setOrigin() [2/2]

virtual void ime::ITransformable::setOrigin	(	float	x,
		float	y
	)

pure virtual

Set the local origin of the object.

Parameters

x	X coordinate of the new origin
y	Y coordinate of the new origin

The origin of an object defines the center point for all transformations (position, scale, rotation). The coordinates of this point must be relative to the top-left corner of the object, and ignore all transformations (position, scale, rotation).

The default origin of a transformable object is (0, 0)

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setPosition() [1/2]

virtual void ime::ITransformable::setPosition ( const Vector2f & position )

pure virtual

Set the position of the object.

Parameters

position New position

This function completely overwrites the previous position. See the move function to apply an offset based on the previous position instead. The default position of a transformable object is (0, 0).

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setPosition() [2/2]

virtual void ime::ITransformable::setPosition	(	float	x,
		float	y
	)

pure virtual

Set the position of the object.

Parameters

x	X coordinate of the new position
y	Y coordinate of the new position

This function completely overwrites the previous position. See the move function to apply an offset based on the previous position instead. The default position of a transformable object is (0, 0).

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setRotation()

virtual void ime::ITransformable::setRotation ( float angle )

pure virtual

Set the orientation of the object.

Parameters

angle New rotation, in degrees

This function completely overwrites the previous rotation. See the rotate function to add an angle based on the previous rotation instead. The default rotation of a transformable object is 0

See also: rotate

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setScale() [1/2]

virtual void ime::ITransformable::setScale ( const Vector2f & scale )

pure virtual

Set the scale factor of the object.

Parameters

scale New scale

This function completely overwrites the previous scale

See also: scale

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

◆ setScale() [2/2]

virtual void ime::ITransformable::setScale	(	float	factorX,
		float	factorY
	)

pure virtual

Set the scale factors of the object.

Parameters

factorX	New horizontal scale factor
factorY	New vertical scale factor

This function completely overwrites the previous scale

See also: scale

Implemented in ime::Shape, ime::Sprite, and ime::ui::Widget.

The documentation for this class was generated from the following file:

ITransformable.h
