Class for performing grid based movement on an entity in a grid. More...

#include <GridMover.h>

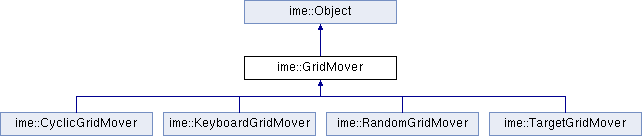

Inheritance diagram for ime::GridMover:

Public Types
enum class	Type { Manual , Random , Target , Cyclic , KeyboardControlled , Custom }
	Types of grid movers. More...

enum class	MoveRestriction { None , All , Vertical , Horizontal , Diagonal , NonDiagonal }
	Restricts the movement of the target along axes. More...

using	Ptr = std::unique_ptr< GridMover >
	Unique grid mover pointer. More...

Public Member Functions
	GridMover (Grid2D &grid, GridObject *gameObject=nullptr)
	Create a manually controlled grid mover. More...

	GridMover (const GridMover &)=delete
	Copy constructor. More...

GridMover &	operator= (const GridMover)=delete
	Copy assignment operator. More...

std::string	getClassType () const override
	Get the name of this class. More...

std::string	getClassName () const override
	Get the name of this class. More...

void	syncWith (const GridMover &other)
	Sync this grid mover with another grid mover. More...

bool	requestMove (const Direction &dir)
	Request a move in a given direction. More...

std::pair< bool, GridObject * >	isBlockedInDirection (const Direction &direction) const
	Check if the target is blocked from moving in a direction. More...

Direction	getDirection () const
	Get the current direction of the game object. More...

Direction	getPrevDirection () const
	Get the previous direction of the target. More...

void	setTarget (GridObject *target)
	Change the controlled entity. More...

GridObject *	getTarget () const
	Get access to the controlled entity. More...

void	setSpeed (const Vector2f &speed)
	Set the speed of the game object. More...

const Vector2f &	getSpeed () const
	Get the speed of the target. More...

void	setSpeedMultiplier (float multiplier)
	Set a speed multiplier. More...

float	getSpeedMultiplier () const
	Get the speed multiplier. More...

void	setMovementRestriction (MoveRestriction moveRestriction)
	Restrict the movement of the game object to certain directions. More...

MoveRestriction	getMovementRestriction () const
	Get the current movement restriction of the game object. More...

void	setMovementFreeze (bool freeze)
	Freeze or unfreeze the targets movement. More...

bool	isMovementFrozen () const
	Check if the targets movement is frozen or not. More...

Index	getCurrentTileIndex () const
	Get the index of the tile currently occupied by the target. More...

Index	getPrevTileIndex () const
	Get the index of the tile previously occupied by the target. More...

Type	getType () const
	Get the type of the grid mover. More...

Grid2D &	getGrid ()
	Get access to the grid in which the target is moved in. More...

const Grid2D &	getGrid () const

bool	isTargetMoving () const
	Check if target is moving or not. More...

void	teleportTargetToDestination ()
	Force the target to reach it's destination. More...

int	onDirectionChange (const Callback< Direction > &callback, bool oneTime=false)
	Add an event listener to a target direction change. More...

void	resetTargetTile ()
	Reset the target tile to be the same as the entity tile. More...

int	onTargetTileReset (const Callback< Index > &callback, bool oneTime=false)
	Add an event listener to target tile reset event. More...

virtual void	update (Time deltaTime)

int	onMoveBegin (const Callback< Index > &callback, bool oneTime=false)
	Add an event listener to a move begin event. More...

int	onMoveEnd (const Callback< Index > &callback, bool oneTime=false)
	Add an event listener to an adjacent tile reached event. More...

int	onObjectCollision (const Callback< GridObject , GridObject > &callback, bool oneTime=false)
	Add an event listener to a grid collision event event. More...

int	onBorderCollision (const Callback<> &callback, bool oneTime=false)
	Add an event listener to a grid border collision event. More...

int	onTileCollision (const Callback< Index > &callback, bool oneTime=false)
	Add an event listener to a tile collision event. More...

	~GridMover () override
	Destructor. More...

void	setTag (const std::string &tag)
	Assign the object an alias. More...

const std::string &	getTag () const
	Get the tag assigned to the object. More...

unsigned int	getObjectId () const
	Get the unique id of the object. More...

int	onPropertyChange (const std::string &property, const Callback< Property > &callback, bool oneTime=false)
	Add an event listener to a specific property change event. More...

int	onPropertyChange (const Callback< Property > &callback, bool oneTime=false)
	Add an event listener to any property change event. More...

void	suspendedEventListener (int id, bool suspend)
	Pause or resume execution of an event listener. More...

bool	isEventListenerSuspended (int id) const
	Check if an event listener is suspended or not. More...

bool	removeEventListener (const std::string &event, int id)
	Remove an event listener from an event. More...

bool	removeEventListener (int id)
	Remove an event listener. More...

int	onDestruction (const Callback<> &callback)
	Add a destruction listener. More...

bool	isSameObjectAs (const Object &other) const
	Check if another object is the same instance as this object. More...

Static Public Member Functions
static GridMover::Ptr	create (Grid2D &grid, GridObject *gameObject=nullptr)
	Create the grid mover. More...

Protected Member Functions
	GridMover (Type type, Grid2D &grid, GridObject *target)
	Create a grid mover. More...

void	emitChange (const Property &property)
	Dispatch a property change event. More...

void	emitDestruction ()
	Emit a destruction event. More...

Protected Attributes
EventEmitter	eventEmitter_
	Event dispatcher. More...

Detailed Description

Class for performing grid based movement on an entity in a grid.

This class monitors the movement of an entity in a grid and ensures that it always moves from one cell to the next and never between grid cells. The entities direction cannot be changed until it has completed it's current movement.

Definition at line 56 of file GridMover.h.

Member Typedef Documentation

◆ Ptr

using ime::GridMover::Ptr = std::unique_ptr<GridMover>

Unique grid mover pointer.

Definition at line 58 of file GridMover.h.

Member Enumeration Documentation

◆ MoveRestriction

enum class ime::GridMover::MoveRestriction

strong

Restricts the movement of the target along axes.

Enumerator
None	Target can move in all in all 8 directions (W, NW, N, NE, E, SE, S, SW)
All	Target cannot move in any direction.
Vertical	Target can only move vertically (N or S)
Horizontal	Target can only move horizontally (W or E)
Diagonal	Target can only move diagonally (NW, NE, SE, SW)
NonDiagonal	Target can only move non-diagonally (W, N, E, S)

Definition at line 75 of file GridMover.h.

◆ Type

enum class ime::GridMover::Type

strong

Types of grid movers.

Enumerator
Manual	Manually triggered grid mover.
Random	Moves a game object randomly in the grid.
Target	Moves a game object to a specific tile within the grid.
Cyclic	Moves a game object by following a closed path.
KeyboardControlled	Moves a game object within the grid using the keyboard as a trigger.
Custom	For classes that extend the grid mover outside of IME.

Definition at line 63 of file GridMover.h.

Constructor & Destructor Documentation

◆ GridMover() [1/3]

ime::GridMover::GridMover	(	Grid2D &	grid,
		GridObject *	gameObject = `nullptr`
	)

explicit

Create a manually controlled grid mover.

Parameters

grid	The grid the game object is in
gameObject	The game object to be controlled by the grid mover

Warning: If gameObject is left as nullptr, then setTarget() must be called before the grid mover is used. If the gameObject is given, it must be in the grid prior to constructor call and it must not have a RigidBody attached to it, otherwise undefined behavior

See also: setTarget

◆ GridMover() [2/3]

ime::GridMover::GridMover ( const GridMover & )

delete

Copy constructor.

◆ ~GridMover()

ime::GridMover::~GridMover ( )

override

Destructor.

◆ GridMover() [3/3]

ime::GridMover::GridMover	(	Type	type,
		Grid2D &	grid,
		GridObject *	target
	)

protected

Create a grid mover.

Parameters

type	The type of the grid mover
grid	Grid to move a target entity in
target	GridObject to be moved in the grid

Note that this constructor is intended to be used by derived classes such that the user cannot change the type of the grid mover during instantiation. The public constructor sets the type to Type::Manual and it cannot be changed once set. Since derived classes must set their own type, they use this constructor to initialize the base class

Warning: if the target is not a nullptr, then it must be placed in the grid prior to instantiation of this class

Member Function Documentation

◆ create()

static GridMover::Ptr ime::GridMover::create	(	Grid2D &	grid,
		GridObject *	gameObject = `nullptr`
	)

static

Create the grid mover.

Parameters

grid	The grid the game object is in
gameObject	The game object to be controlled by the grid mover

Returns: The created grid mover

Warning: If gameObject is left as nullptr, then setTarget() must be called before the grid mover is used. If the gameObject is given, it must be in the grid prior to constructor call and it must not have a RigidBody attached to it, otherwise undefined behavior

See also: setTarget

◆ emitChange()

void ime::Object::emitChange ( const Property & property )

protectedinherited

Dispatch a property change event.

Parameters

property The property that changed

This function will invoke all the event listeners of the specified property

See also: emit

◆ emitDestruction()

void ime::Object::emitDestruction ( )

protectedinherited

Emit a destruction event.

Note: This function must be the first statement in the definition of a destructor to avoid undefined behavior. In addition, note that destruction listeners are invoked once. Therefore, multiple classes in a hierarchy may call this function but the class that makes the call first will be the one that invokes the destruction listeners

◆ getClassName()

std::string ime::GridMover::getClassName ( ) const

overridevirtual

Get the name of this class.

Returns: The name of this class

Implements ime::Object.

Reimplemented in ime::KeyboardGridMover, ime::RandomGridMover, and ime::TargetGridMover.

◆ getClassType()

std::string ime::GridMover::getClassType ( ) const

overridevirtual

Get the name of this class.

Returns: The name of this class

Note that this function is only implemented by child classes of Object which also serve as a base class for other classes

See also: Object::getClassType and Object::getClassName

Reimplemented from ime::Object.

◆ getCurrentTileIndex()

Index ime::GridMover::getCurrentTileIndex ( ) const

Get the index of the tile currently occupied by the target.

Returns: The position of the tile currently occupied by the target in tiles

Recall that when moved, the target occupies a tile ahead of time (see requestMove())

See also: getPrevTileIndex

◆ getDirection()

Direction ime::GridMover::getDirection ( ) const

Get the current direction of the game object.

Returns: The current direction of the game object

◆ getGrid()

Grid2D & ime::GridMover::getGrid ( )

Get access to the grid in which the target is moved in.

Returns: The grid in which the target is being moved in

◆ getMovementRestriction()

MoveRestriction ime::GridMover::getMovementRestriction ( ) const

Get the current movement restriction of the game object.

Returns: The current movement restriction

◆ getObjectId()

unsigned int ime::Object::getObjectId ( ) const

inherited

Get the unique id of the object.

Returns: The unique id of the object

Note that each instance of ime::Object has a unique id

See also: setTag

◆ getPrevDirection()

Direction ime::GridMover::getPrevDirection ( ) const

Get the previous direction of the target.

Returns: The previous direction of the target

◆ getPrevTileIndex()

Index ime::GridMover::getPrevTileIndex ( ) const

Get the index of the tile previously occupied by the target.

Returns: The tile the target was on before moving to another tile

If the target never moved, then this function will return the tile currently occupied by the target

See also: getCurrentTileIndex

◆ getSpeed()

const Vector2f & ime::GridMover::getSpeed ( ) const

Get the speed of the target.

Returns: The speed of the target

See also: setSpeed

◆ getSpeedMultiplier()

float ime::GridMover::getSpeedMultiplier ( ) const

Get the speed multiplier.

Returns: The speed multiplier

See also: setSpeedMultiplier

◆ getTag()

const std::string & ime::Object::getTag ( ) const

inherited

Get the tag assigned to the object.

Returns: The tag of the object

See also: setTag

◆ getTarget()

GridObject * ime::GridMover::getTarget ( ) const

Get access to the controlled entity.

Returns: The controlled entity, or a nullptr if there is no entity to control

◆ getType()

Type ime::GridMover::getType ( ) const

Get the type of the grid mover.

Returns: The type of the grid mover

◆ isBlockedInDirection()

std::pair< bool, GridObject * > ime::GridMover::isBlockedInDirection ( const Direction & direction ) const

Check if the target is blocked from moving in a direction.

Parameters

direction The direction to be checked

Returns: A pair, of which the first element is a bool that is true if the target is blocked or false if the target is not blocked and the second element is a pointer to an obstacle game object that is a nullptr when the first element is false or when the first element is true but the target is not blocked by a game object

This function will return true if the target is blocked by a collidable tile or an obstacle (see ime::GridObject::setObstacle), or if a move in the given direction will place it outside the bounds of the grid

◆ isEventListenerSuspended()

bool ime::Object::isEventListenerSuspended ( int id ) const

inherited

Check if an event listener is suspended or not.

Parameters

id	The identification number of the listener to be checked

Returns: True if suspended, otherwise false

This function also returns false if the specified event listener does not exist

See also: suspendedEventListener

◆ isMovementFrozen()

bool ime::GridMover::isMovementFrozen ( ) const

Check if the targets movement is frozen or not.

Returns: True if movement is frozen otherwise false

See also: setMovementFreeze

◆ isSameObjectAs()

bool ime::Object::isSameObjectAs ( const Object & other ) const

inherited

Check if another object is the same instance as this object.

Parameters

other The object to compare against this object

Returns: True if other is the same instance as this object, otherwise false

◆ isTargetMoving()

bool ime::GridMover::isTargetMoving ( ) const

Check if target is moving or not.

Returns: True if target is moving otherwise false

Warning: This function will return false if the target is not moving or there is no target set. Therefore, the existence of the target should be checked first for accurate results

See also: getTarget

◆ onBorderCollision()

int ime::GridMover::onBorderCollision	(	const Callback<> &	callback,
		bool	oneTime = `false`
	)

Add an event listener to a grid border collision event.

Parameters

callback	Function to execute when the collision takes place
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners identification number

This event is emitted when the target tries to go beyond the bounds of the grid. By default the event is handled internally before it's emitted to the outside. The internal handler prevents the target from leaving the grid. That is, the target will occupy the same tile it occupied before the collision. This behaviour is not removable, however, it may be overridden since the internal handler is called first before alerting external handlers

See also: unsubscribe

◆ onDestruction()

int ime::Object::onDestruction ( const Callback<> & callback )

inherited

Add a destruction listener.

Parameters

callback Function to be executed when the object is destroyed

Returns: The unique id of the destruction listener

The destruction listener is called when the object reaches the end of its lifetime. Note that an object may have multiple destruction listeners registered to it

Warning: It's not advised to call virtual functions in the destruction callback as some parts of the object may have already been destroyed by the time the callback is invoked. In such an event, the behavior is undefined

See also: removeEventListener

◆ onDirectionChange()

int ime::GridMover::onDirectionChange	(	const Callback< Direction > &	callback,
		bool	oneTime = `false`
	)

Add an event listener to a target direction change.

Parameters

callback	The function to be executed when target direction changes
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners unique identifier

The direction change event is triggered by a move request

See also: requestMove

◆ onMoveBegin()

int ime::GridMover::onMoveBegin	(	const Callback< Index > &	callback,
		bool	oneTime = `false`
	)

Add an event listener to a move begin event.

Parameters

callback	The function to be executed when the game object starts moving
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners unique identification number

This event is emitted when the game object starts moving from its current tile to one of its adjacent tile. The callback is passed the index of the tile that the game object is currently moving to

Note: When controlled by a grid mover, the game object will always move one tile at a time, regardless of how fast it's moving

See also: onAdjacentMoveEnd

◆ onMoveEnd()

int ime::GridMover::onMoveEnd	(	const Callback< Index > &	callback,
		bool	oneTime = `false`
	)

Add an event listener to an adjacent tile reached event.

Parameters

callback	Function to execute when the target reaches its target tile
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners identification number

This event is emitted when the target moves from its current tile to any of its adjacent tiles.

Note: When controlled by a grid mover, the target will always move one tile at a time, regardless of how fast the target is moving

The callback is passed the index of the tile the target moved to

See also: onAdjacentMoveBegin

◆ onObjectCollision()

int ime::GridMover::onObjectCollision	(	const Callback< GridObject , GridObject > &	callback,
		bool	oneTime = `false`
	)

Add an event listener to a grid collision event event.

Parameters

callback	The function to be executed when the target collides with another game object
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners unique identification number

◆ onPropertyChange() [1/2]

int ime::Object::onPropertyChange	(	const Callback< Property > &	callback,
		bool	oneTime = `false`
	)

inherited

Add an event listener to any property change event.

Parameters

callback	The function to be executed when any property changes
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The unique id of the event listener

When unsubscribing the any property change event handler, you must pass "propertyChange" as the name of the event

See also: onPropertyChange(const std::string&, const ime::Callback<ime::Property>&)

◆ onPropertyChange() [2/2]

int ime::Object::onPropertyChange	(	const std::string &	property,
		const Callback< Property > &	callback,
		bool	oneTime = `false`
	)

inherited

Add an event listener to a specific property change event.

Parameters

property	The name of the property to add an event listener to
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered
callback	The function to be executed when the property changes

Returns: The unique id of the event listener

A property change event is triggered by any function that begins with set, where the the text after set is the name of the property. For example, the setTag() function, modifies the tag property of the object, thus will generate a "tag" change event each time it is called

Note that multiple event listeners may be registered to the same property change event. In addition, when adding a property change event listener, the name of the property must be in lowercase.

// Prints the tag of the player object to the console everytime it changes
player.onPropertyChange("tag", [](const Property& property) {
     cout << "New tag: " <<  property.getValue<std::string>() << endl;
});

...
//Sets tag = "player1" and invokes event listener(s)
player.setTag("player1");

See also: unsubscribe and onPropertyChange(const ime::Callback<ime::Property>&)

◆ onTargetTileReset()

int ime::GridMover::onTargetTileReset	(	const Callback< Index > &	callback,
		bool	oneTime = `false`
	)

Add an event listener to target tile reset event.

Parameters

callback	Function to execute when the target tile is reset
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners identification number

See also: resetTargetTile and unsubscribe

◆ onTileCollision()

int ime::GridMover::onTileCollision	(	const Callback< Index > &	callback,
		bool	oneTime = `false`
	)

Add an event listener to a tile collision event.

Parameters

callback	Function to execute when the collision takes place
oneTime	True to execute the callback one-time or false to execute it every time the event is triggered

Returns: The event listeners identification number

This event is emitted when the target collides with a solid tile in the grid (Solid tiles are always collidable). By default, the event is handled internally before its emitted to the outside. The internal handler prevents the target from occupying the solid tile by moving it back to its previous tile after the collision

The callback is passed the index of the tile the target collided with

See also: unsubscribe

◆ operator=()

GridMover & ime::GridMover::operator= ( const GridMover )

delete

Copy assignment operator.

◆ removeEventListener() [1/2]

bool ime::Object::removeEventListener	(	const std::string &	event,
		int	id
	)

inherited

Remove an event listener from an event.

Parameters

event	The name of the event to remove an event listener from
id	The unique id of the event listener to be removed

Returns: True if the event listener was removed or false if the event or the event listener is does not exist

// Display the tag of the object to console every time it changes
auto tagChangeId = object.onPropertyChange("tag", [](ime::Property tag) {
     std::cout << name.getValue<std::string>() << std::endl;
});

// Stop displaying the tag of the object when it changes
object.removeEventListener("tag", tagChangeId);

◆ removeEventListener() [2/2]

bool ime::Object::removeEventListener ( int id )

inherited

Remove an event listener.

Parameters

id	The id of the event listener to be removed

Returns: True if the event listener was removed or false if no such handler exists

◆ requestMove()

bool ime::GridMover::requestMove ( const Direction & dir )

Request a move in a given direction.

Parameters

dir	The direction to move in

Returns: True if the move was granted or false if the target is currently moving to another tile

The target can only move one tile at a time, as a result it cannot be requested to move to a tile while it is currently moving towards another tile (see isTargetMoving()). In addition, If a move in the specified direction is possible, the adjacent tile in the specified direction will be flagged as occupied by the target before it moves to it

◆ resetTargetTile()

void ime::GridMover::resetTargetTile ( )

Reset the target tile to be the same as the entity tile.

Note: This function must be called every time the target is manually moved in the grid so that the grid mover can register the new position of the target. If not called, the GridMover will lose control of the target and the targets movement behavior is undefined in such a case. In addition, note that the target tile can only be reset when the target is not moving. Here's an example:

// Let the grid mover be responsible for moving the player object
grid.addChild(player, ime::Index{4, 5});
gridMover.setTarget(player);

...

// Manually move the player to some desired position
if (!gridMover.isTargetMoving) {
    gridMover.getGrid().removeChild(player);
    gridMover.getGrid().addChild(player, ime::Index{11, 20});

     // Let the grid mover know that the player is no longer where it
     // was registered to be (The grid mover will update itself accordingly)
     gridMover.resetTargetTile();
}

◆ setMovementFreeze()

void ime::GridMover::setMovementFreeze ( bool freeze )

Freeze or unfreeze the targets movement.

Parameters

freeze True to freeze movement or false to unfreeze

This function achieves the same thing as setMovementRestriction(). The difference is when the function is called while the target is moving. setMovementRestriction(true) will prevent the target from moving further after the targets gets to its targeted tile whilst setMovementFreeze(true) will immediately prevent the target from moving further. This means that the target can temporarily be in between grid tiles

By default, the targets movement is not frozen

See also: setMovementRestriction

◆ setMovementRestriction()

void ime::GridMover::setMovementRestriction ( MoveRestriction moveRestriction )

Restrict the movement of the game object to certain directions.

Parameters

moveRestriction Permitted direction of travel

By default the movement restrictions is MovementRestriction::None

See also: setMovementFreeze

◆ setSpeed()

void ime::GridMover::setSpeed ( const Vector2f & speed )

Set the speed of the game object.

Parameters

speed The new speed

If the game object is currently moving, the speed will be set after it reaches its current target tile

Note that for a ime::MoveRestriction::Diagonal or ime::MoveRestriction::None, the speed must be the same for both the x and y axis, otherwise undefined behaviour

By default, the speed is ime::Vector2f{60, 60}

See also: getSpeed

◆ setSpeedMultiplier()

void ime::GridMover::setSpeedMultiplier ( float multiplier )

Set a speed multiplier.

Parameters

multiplier The new speed multiplier

A speed multiplier increases or decreases the speed of the target without affecting its default speed. For example, A multiplier of 2.0f makes the target move twice as fast, a multiplier of 0.5f makes the target move at half its normal speed and a multiplier of 0.0f stops the target from moving. Note that a negative multiplier will be ignored

By default, the multiplier is 1.0f (normal)

See also: getSpeedMultiplier

◆ setTag()

void ime::Object::setTag ( const std::string & tag )

inherited

Assign the object an alias.

Parameters

tag	The alias of the object

This function is useful if you want to refer to the object by a tag instead of its object id. Unlike an object id, multiple objects may have the same tag

By default, the tag is an empty string

See also: getObjectId

◆ setTarget()

void ime::GridMover::setTarget ( GridObject * target )

Change the controlled entity.

Parameters

target New target

Provide nullptr as argument to remove current target

Warning: if the target is not a nullptr, then it must exist in the Grid2D and must not have a RigidBody attached to it, otherwise undefined behavior

◆ suspendedEventListener()

void ime::Object::suspendedEventListener	(	int	id,
		bool	suspend
	)

inherited

Pause or resume execution of an event listener.

Parameters

id	The event listeners unique identification number
suspend	True to suspend/pause or false to unsuspend/resume

See also: isEventListenerSuspended

◆ syncWith()

void ime::GridMover::syncWith ( const GridMover & other )

Sync this grid mover with another grid mover.

Parameters

other The grid mover to sync with this grid mover with

In situations where you want to change a targets grid mover, you'll have to synchronize the new grid mover with the current grid mover to avoid misalignment with the grid. When misaligned, the target is no longer confined to the grid and moves indefinitely in its current direction. Note that misalignment does not occur when the target is not moving, i.e when isMoving() returns false.

// Lets assume a player target was being moved by a ime::RandomGridMover
// and now we want it to be moved by a ime::CyclicGridMover
cyclicGridMover.sync(randomGridMover);
cyclicGridMover.setTarget(randomGridMover.getTarget());
randomGridMover.setTarget(nullptr);
cyclicGridMover.startMovement();

◆ teleportTargetToDestination()

void ime::GridMover::teleportTargetToDestination ( )

Force the target to reach it's destination.

The destination in this context is always the adjacent tile the target is headed towards. This function has no effect if the target is not moving towards any tile

Member Data Documentation

◆ eventEmitter_

EventEmitter ime::Object::eventEmitter_

protectedinherited

Event dispatcher.

Definition at line 289 of file Object.h.

The documentation for this class was generated from the following file:

GridMover.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Ptr

Member Enumeration Documentation

◆ MoveRestriction

◆ Type

Constructor & Destructor Documentation

◆ GridMover() [1/3]

◆ GridMover() [2/3]

◆ ~GridMover()

◆ GridMover() [3/3]

Member Function Documentation

◆ create()

◆ emitChange()

◆ emitDestruction()

◆ getClassName()

◆ getClassType()

◆ getCurrentTileIndex()

◆ getDirection()

◆ getGrid()

◆ getMovementRestriction()

◆ getObjectId()

◆ getPrevDirection()

◆ getPrevTileIndex()

◆ getSpeed()

◆ getSpeedMultiplier()

◆ getTag()

◆ getTarget()

◆ getType()

◆ isBlockedInDirection()

◆ isEventListenerSuspended()

◆ isMovementFrozen()

◆ isSameObjectAs()

◆ isTargetMoving()

◆ onBorderCollision()

◆ onDestruction()

◆ onDirectionChange()

◆ onMoveBegin()

◆ onMoveEnd()

◆ onObjectCollision()

◆ onPropertyChange() [1/2]

◆ onPropertyChange() [2/2]

◆ onTargetTileReset()

◆ onTileCollision()

◆ operator=()

◆ removeEventListener() [1/2]

◆ removeEventListener() [2/2]

◆ requestMove()

◆ resetTargetTile()

◆ setMovementFreeze()

◆ setMovementRestriction()

◆ setSpeed()

◆ setSpeedMultiplier()

◆ setTag()

◆ setTarget()

◆ suspendedEventListener()

◆ syncWith()

◆ teleportTargetToDestination()

Member Data Documentation

◆ eventEmitter_
