Abstract base class for geometric figures. More...

#include <Shape.h>

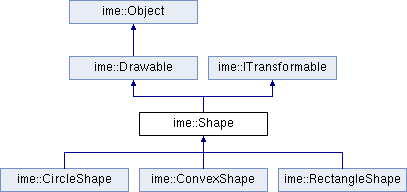

Inheritance diagram for ime::Shape:

Public Types
enum	Type { Type::Rectangle, Type::Circle, Type::Convex }
	The types of shapes. More...

using	Ptr = std::shared_ptr< Shape >
	Shared shape pointer. More...

Public Member Functions
	Shape (std::unique_ptr< priv::IShapeImpl > impl, Type type)

	Shape (const Shape &)
	Copy constructor. More...

Shape &	operator= (const Shape &)
	Copy assignment operator. More...

	Shape (Shape &&) noexcept
	Move constructor. More...

Shape &	operator= (Shape &&) noexcept
	Move assignment operator. More...

std::string	getClassType () const override
	Get the name of this class. More...

Type	getShapeType () const
	Get the type of this shape. More...

void	attachRigidBody (Body::Ptr body)
	Attach a rigid body to a shape. More...

void	removeRigidBody ()
	Remove a rigid body from the shape. More...

Body::Ptr	getRigidBody ()
	Get the rigid body attached to the shape. More...

Body::Ptr	getRigidBody () const

bool	hasRigidBody () const
	Check if the the shape has a rigid body attached to it or not. More...

void	setFillColour (const Colour &colour)
	Set the fill colour of the shape. More...

Colour	getFillColour () const
	Get the fill colour of the shape. More...

void	setOutlineColour (const Colour &colour)
	Set the outline colour of the shape. More...

Colour	getOutlineColour () const
	Get the outline colour of the shape. More...

void	setOutlineThickness (float thickness)
	Set the thickness of the shape's outline. More...

float	getOutlineThickness () const
	Get the outline thickness of the shape. More...

FloatRect	getLocalBounds () const
	Get the local bounding rectangle of the shape. More...

FloatRect	getGlobalBounds () const
	Get the global bounding rectangle of the shape. More...

void	setPosition (float x, float y) override
	Set the position of the shape. More...

void	setPosition (Vector2f position) override
	Set the position of the shape. More...

Vector2f	getPosition () const override
	Get the position of the shape. More...

void	setRotation (float angle) override
	Set the orientation of the shape. More...

void	rotate (float angle) override
	Rotate the shape. More...

float	getRotation () const override
	Get the orientation of the shape. More...

void	setScale (float factorX, float factorY) override
	Set the scale factors of the shape. More...

void	setScale (Vector2f scale) override
	Set the scale factor of the shape. More...

void	scale (float factorX, float factorY) override
	Scale the shape by an offset. More...

void	scale (Vector2f factor) override
	Scale the shape by an offset. More...

Vector2f	getScale () const override
	Get the current scale of the shape. More...

void	setOrigin (float x, float y) override
	Set the local origin of the shape. More...

void	setOrigin (Vector2f origin) override
	Set the local origin of the shape. More...

Vector2f	getOrigin () const override
	Get the local origin of the shape. More...

void	move (float offsetX, float offsetY) override
	Move the shape by a given offset. More...

void	move (Vector2f offset) override
	Move the shape by a given offset. More...

virtual Shape::Ptr	clone () const =0
	Make a copy of the shape. More...

void	draw (Window &renderTarget) const override
	Draw the shape on a render target. More...

	~Shape () override
	Destructor. More...

void	setTag (const std::string &tag)
	Assign the object an alias. More...

const std::string &	getTag () const
	Get the alias of the object. More...

unsigned int	getObjectId () const
	Get the id of the object. More...

virtual std::string	getClassName () const =0
	Get the name of the concrete class. More...

int	onPropertyChange (const std::string &property, const Callback< Property > &callback)
	Add an event listener to a specific property change event. More...

void	onPropertyChange (const Callback< Property > &callback)
	Add an event listener to a property change event. More...

int	onEvent (const std::string &event, const Callback<> &callback)
	Add an event listener to an event. More...

bool	unsubscribe (const std::string &event, int id)
	Remove an event listener from an event. More...

int	onDestruction (const Callback<> &callback)
	Add a destruction listener. More...

bool	removeDestructionListener (int id)
	Remove a destruction listener form the object. More...

bool	operator== (const Object &rhs) const
	Check if two objects are the same object or not. More...

bool	operator!= (const Object &rhs) const
	Check if two objects are not the same object. More...

Protected Member Functions
std::shared_ptr< void >	getInternalPtr () const

void	emitChange (const Property &property)
	Dispatch a property change event. More...

void	emit (const std::string &event)
	Dispatch an action event. More...

Detailed Description

Abstract base class for geometric figures.

Some common geometric figures are squares, rectangles and triangles

Definition at line 46 of file Shape.h.

Member Typedef Documentation

◆ Ptr

using ime::Shape::Ptr = std::shared_ptr<Shape>

Shared shape pointer.

Definition at line 48 of file Shape.h.

Member Enumeration Documentation

◆ Type

enum ime::Shape::Type

strong

The types of shapes.

Enumerator
Rectangle	Rectangle shape.
Circle	Circle shape.
Convex	Convex polygon shape.

Definition at line 53 of file Shape.h.

Constructor & Destructor Documentation

◆ Shape() [1/2]

ime::Shape::Shape ( const Shape & )

Copy constructor.

◆ Shape() [2/2]

ime::Shape::Shape ( Shape && )

noexcept

Move constructor.

◆ ~Shape()

ime::Shape::~Shape ( )

override

Destructor.

Member Function Documentation

◆ attachRigidBody()

void ime::Shape::attachRigidBody ( Body::Ptr body )

Attach a rigid body to a shape.

Parameters

body	The body to be attached

Attaching a rigid Body to a shape enables physics for that shape. This means that you should refrain from calling functions that MODIFY the shapes transform (position, rotation and origin). Note that the physics simulation does not account for scaling, that should be handles by you

Note: Attaching a rigid body will alter the origin of the shape to match the centre of mass of the body

Warning: The pointer must not be a nullptr. Also, you cannot attach a rigid body to a shape that already has a rigid body attached, the previous body must be removed first

See also: removeRigidBody

◆ clone()

virtual Shape::Ptr ime::Shape::clone ( ) const

pure virtual

Make a copy of the shape.

Returns: A copy of the shape

You should use this function if you don't care about the type of the shape, otherwise use the shapes copy function for copying purposes

Implemented in ime::RectangleShape, ime::ConvexShape, and ime::CircleShape.

◆ draw()

void ime::Shape::draw ( Window & renderTarget ) const

overridevirtual

Draw the shape on a render target.

Parameters

renderTarget Target to draw object on

Implements ime::Drawable.

◆ emit()

void ime::Object::emit ( const std::string & event )

protectedinherited

Dispatch an action event.

Parameters

event The name of the event to be dispatched

This function will invoke all event listeners of the specified event. The function should be used for events that represent an action, rather than those that represent a property change (Use emitChange for that)

See also: emitChange

◆ emitChange()

void ime::Object::emitChange ( const Property & property )

protectedinherited

Dispatch a property change event.

Parameters

property The property that changed

This function will invoke all the event listeners of the specified property

See also: emit

◆ getClassName()

virtual std::string ime::Object::getClassName ( ) const

pure virtualinherited

Get the name of the concrete class.

Returns: The name of the objects concrete class

This function is implemented by all internal classes that inherit from this class.

See also: getClassType

Implemented in ime::Tile, ime::SpriteSheet, ime::Sprite, ime::RectangleShape, ime::ConvexShape, ime::CircleShape, ime::Camera, ime::Scene, ime::RenderLayerContainer, ime::RenderLayer, ime::TargetGridMover, ime::RandomGridMover, ime::KeyboardGridMover, ime::DistanceJoint, ime::PolygonCollider, ime::EdgeCollider, ime::CircleCollider, ime::BoxCollider, ime::Body, ime::AABB, and ime::GameObject.

◆ getClassType()

std::string ime::Shape::getClassType ( ) const

overridevirtual

Get the name of this class.

Returns: The name of this class

Note that this function is only implemented by child classes of Object which also serve as a base class for other classes

See also: Object::getClassType and Object::getClassName

Reimplemented from ime::Drawable.

◆ getFillColour()

Colour ime::Shape::getFillColour ( ) const

Get the fill colour of the shape.

Returns: The fill colour of the shape

◆ getGlobalBounds()

FloatRect ime::Shape::getGlobalBounds ( ) const

Get the global bounding rectangle of the shape.

Returns: The global bounding rectangle of the shape

The returned rectangle is in global coordinates, which means that it takes into account the transformations (translation, rotation, scale, ...) that are applied to the entity. In other words, this function returns the bounds of the shape in the global 2D world's coordinate system.

◆ getLocalBounds()

FloatRect ime::Shape::getLocalBounds ( ) const

Get the local bounding rectangle of the shape.

Returns: The local bounding rectangle of the shape

The returned rectangle is in local coordinates, which means that it ignores the transformations (translation, rotation, scale, ...) that are applied to the entity

◆ getObjectId()

unsigned int ime::Object::getObjectId ( ) const

inherited

Get the id of the object.

Returns: The id of the object

Each object has a unique id

◆ getOrigin()

Vector2f ime::Shape::getOrigin ( ) const

overridevirtual

Get the local origin of the shape.

Returns: Local origin of the shape

Implements ime::ITransformable.

◆ getOutlineColour()

Colour ime::Shape::getOutlineColour ( ) const

Get the outline colour of the shape.

Returns: The outline colour of the shape

◆ getOutlineThickness()

float ime::Shape::getOutlineThickness ( ) const

Get the outline thickness of the shape.

Returns: The outline thickness of the shape

◆ getPosition()

Vector2f ime::Shape::getPosition ( ) const

overridevirtual

Get the position of the shape.

Returns: Current position of the shape

Implements ime::ITransformable.

◆ getRigidBody()

Body::Ptr ime::Shape::getRigidBody ( )

Get the rigid body attached to the shape.

Returns: The rigid body attached to the shape or a nullptr if the shape does not have a rigid body attached to it

◆ getRotation()

float ime::Shape::getRotation ( ) const

overridevirtual

Get the orientation of the shape.

Returns: Current rotation, in degrees

The rotation is always in the range [0, 360]

Implements ime::ITransformable.

◆ getScale()

Vector2f ime::Shape::getScale ( ) const

overridevirtual

Get the current scale of the shape.

Returns: Current scale of the shape

Implements ime::ITransformable.

◆ getShapeType()

Type ime::Shape::getShapeType ( ) const

Get the type of this shape.

Returns: The type of the shape

◆ getTag()

const std::string& ime::Object::getTag ( ) const

inherited

Get the alias of the object.

Returns: The alias of the object

See also: setTag and getObjectId

◆ hasRigidBody()

bool ime::Shape::hasRigidBody ( ) const

Check if the the shape has a rigid body attached to it or not.

Returns: True if the shape has a rigid body attached to it, otherwise false

◆ move() [1/2]

void ime::Shape::move	(	float	offsetX,
		float	offsetY
	)

overridevirtual

Move the shape by a given offset.

Parameters

offsetX	Horizontal offset
offsetY	Vertical offset

This function adds to the current position of the shape, unlike setPosition which overwrites it

See also: setPosition

Implements ime::ITransformable.

◆ move() [2/2]

void ime::Shape::move ( Vector2f offset )

overridevirtual

Move the shape by a given offset.

Parameters

offset Offset to apply

This function adds to the current position of the shape, unlike setPosition which overwrites it

See also: setPosition

Implements ime::ITransformable.

◆ onDestruction()

int ime::Object::onDestruction ( const Callback<> & callback )

inherited

Add a destruction listener.

Parameters

callback Function to be executed when the object is destroyed

Returns: The id of the destruction listener

Note that an object may have more than one destruction listeners, however, you have to keep the returned id if you may want to remove the callback at a later time

Warning: The callback is called when the object is destroyed. Do not try to access the object in the callback. Doing so is undefined behavior

See also: removeDestructionListener

◆ onEvent()

int ime::Object::onEvent	(	const std::string &	event,
		const Callback<> &	callback
	)

inherited

Add an event listener to an event.

Parameters

event	The name of the event to add an an event listener to
callback	The function to be executed when the event takes place

Returns: The unique identification number of the event listener

Unlike onPropertyChange, this function registers event listeners to events that occur when something happens to the object, or when the object does something (action events). Usually the name of the event/action is the name of the function:

// Add event listeners to the object
object.onEvent("attachRigidBody", [] {
    std::cout << "Rigid body attached to object << std::endl;
});

object.onEvent("removeRigidBody", [] {
    std::cout << "Rigid body removed from object << std::endl;
});

// Invokes event listener(s)
object.attachRigidBody(body);
object.removeRigidBody();

See also: onPropertyChange and unsubscribe

◆ onPropertyChange() [1/2]

void ime::Object::onPropertyChange ( const Callback< Property > & callback )

inherited

Add an event listener to a property change event.

Parameters

callback The function to be executed when the property changes

Returns: The unique id of the event listener

Note that only one callback function may be registered with this function. This means that adding a new event listener overwrites the previous event listener. To remove the callback, pass a nullptr as an argument. The function may be useful if you want to write the logic for property changes in one function.

See also: onPropertyChange(std::string, Callback)

◆ onPropertyChange() [2/2]

int ime::Object::onPropertyChange	(	const std::string &	property,
		const Callback< Property > &	callback
	)

inherited

Add an event listener to a specific property change event.

Parameters

property	The name of the property to listen for
callback	The function to be executed when the property changes

Returns: The unique id of the event listener

A property change event is triggered by any function that begins with set, where the the text after set is the name of the property. For example, for the setTag function, the property that the function modifies is Tag.

Note that when adding a property change event listener, the name of the property must be in lowercase:

// Prints the tag of the player object to the console everytime it changes
player.onPropertyChange("tag", [](const Property& property) {
     cout << "New tag: " <<  property.getValue<std::string>() << endl;
});

...
//Sets tag = "player1" and invokes event listener(s)
player.setTag("player1");

Unlike onPropertyChange(const Callback&) you can add multiple event listeners to the same property using this function. However you must store the unique id of the event listener if you wish to remove it at a later time

See also: unsubscribe and onPropertyChange(Callback)

◆ operator!=()

bool ime::Object::operator!= ( const Object & rhs ) const

inherited

Check if two objects are not the same object.

Parameters

rhs	Object to compare against this object

Returns: True if rhs is NOT the same object as this object, otherwise false

Two objects are different from each other if they have different object id's

See also: getObjectId and operator==

◆ operator=() [1/2]

Shape& ime::Shape::operator= ( const Shape & )

Copy assignment operator.

◆ operator=() [2/2]

Shape& ime::Shape::operator= ( Shape && )

noexcept

Move assignment operator.

◆ operator==()

bool ime::Object::operator== ( const Object & rhs ) const

inherited

Check if two objects are the same object or not.

Parameters

rhs	Object to compare against this object

Returns: True if rhs is the same object as this object, otherwise false

Two objects are the same object if they have the same object id. Recall that each object instance has a unique id

See also: getObjectId and operator!=

◆ removeDestructionListener()

bool ime::Object::removeDestructionListener ( int id )

inherited

Remove a destruction listener form the object.

Parameters

The	id of the destruction listener to be removed

Returns: True if the destruction listener was removed or false if the listener with the given id does not exist

◆ removeRigidBody()

void ime::Shape::removeRigidBody ( )

Remove a rigid body from the shape.

Removing a rigid Body from a shape disables all physics applied to the shape. This means that the shape will not respond to forces ans must be moved and rotated manually if need be

◆ rotate()

void ime::Shape::rotate ( float angle )

overridevirtual

Rotate the shape.

Parameters

angle Angle of rotation, in degrees

This function adds to the current rotation of the shape, unlike setRotation which overwrites it

See also: setRotation

Implements ime::ITransformable.

◆ scale() [1/2]

void ime::Shape::scale	(	float	factorX,
		float	factorY
	)

overridevirtual

Scale the shape by an offset.

Parameters

factorX	Horizontal scale factor
factorY	Vertical scale factor

This function multiplies the current scale of the shape, unlike setScale which overwrites it

See also: setScale

Implements ime::ITransformable.

◆ scale() [2/2]

void ime::Shape::scale ( Vector2f factor )

overridevirtual

Scale the shape by an offset.

Parameters

factor Offset to apply

This function multiplies the current scale of the shape, unlike setScale which overwrites it

See also: setScale

Implements ime::ITransformable.

◆ setFillColour()

void ime::Shape::setFillColour ( const Colour & colour )

Set the fill colour of the shape.

Parameters

colour The new colour of the shape

By default, the shape's fill colour is opaque white.

◆ setOrigin() [1/2]

void ime::Shape::setOrigin	(	float	x,
		float	y
	)

overridevirtual

Set the local origin of the shape.

Parameters

x	X coordinate of the new origin
y	Y coordinate of the new origin

The origin of the shape defines the center point for all transformations (position, scale, rotation). The coordinates of this point must be relative to the top-left corner of the shape, and ignore all transformations (position, scale, rotation).

The default origin of the shape is (0, 0)

Implements ime::ITransformable.

◆ setOrigin() [2/2]

void ime::Shape::setOrigin ( Vector2f origin )

overridevirtual

Set the local origin of the shape.

Parameters

origin New origin

The origin of the shape defines the center point for all transformations (position, scale, rotation). The coordinates of this point must be relative to the top-left corner of the shape, and ignore all transformations (position, scale, rotation).

The default origin of the shape is (0, 0)

Implements ime::ITransformable.

◆ setOutlineColour()

void ime::Shape::setOutlineColour ( const Colour & colour )

Set the outline colour of the shape.

Parameters

colour The new outline colour

By default, the shape's outline colour is opaque white.

◆ setOutlineThickness()

void ime::Shape::setOutlineThickness ( float thickness )

Set the thickness of the shape's outline.

Parameters

thickness The new outline thickness

Note that negative values are allowed (so that the outline expands towards the center of the shape), and using zero disables the outline.

By default, the outline thickness is 0.

◆ setPosition() [1/2]

void ime::Shape::setPosition	(	float	x,
		float	y
	)

overridevirtual

Set the position of the shape.

Parameters

x	X coordinate of the new position
y	Y coordinate of the new position

This function completely overwrites the previous position. use move function to apply an offset based on the previous position instead

The default position of a the shape is (0, 0)

See also: move

Implements ime::ITransformable.

◆ setPosition() [2/2]

void ime::Shape::setPosition ( Vector2f position )

overridevirtual

Set the position of the shape.

Parameters

position New position

This function completely overwrites the previous position. Use the move function to apply an offset based on the previous position instead.

The default position of the shape is (0, 0)

See also: move

Implements ime::ITransformable.

◆ setRotation()

void ime::Shape::setRotation ( float angle )

overridevirtual

Set the orientation of the shape.

Parameters

angle New rotation, in degrees

This function completely overwrites the previous rotation. See the rotate function to add an angle based on the previous rotation instead.

The default rotation of the shape is 0

See also: rotate

Implements ime::ITransformable.

◆ setScale() [1/2]

void ime::Shape::setScale	(	float	factorX,
		float	factorY
	)

overridevirtual

Set the scale factors of the shape.

Parameters

factorX	New horizontal scale factor
factorY	New vertical scale factor

This function completely overwrites the previous scale

See also: scale

Implements ime::ITransformable.

◆ setScale() [2/2]

void ime::Shape::setScale ( Vector2f scale )

overridevirtual

Set the scale factor of the shape.

Parameters

scale New scale

This function completely overwrites the previous scale

See also: scale

Implements ime::ITransformable.

◆ setTag()

void ime::Object::setTag ( const std::string & tag )

inherited

Assign the object an alias.

Parameters

name	The alias of the object

This function is useful if you want to refer to the object by tag instead of its id. Unlike an object id, multiple objects may have the same tag.

By default, the tag is an empty string

◆ unsubscribe()

bool ime::Object::unsubscribe	(	const std::string &	event,
		int	id
	)

inherited

Remove an event listener from an event.

Parameters

event	The name of the event to remove event listener from
id	The unique id of the event listener to be removed

Returns: True if the event listener was removed or false if the event or the event listener is does not exist

// Display the name of the object to console every time it changes
auto nameChangeId = object.onPropertyChange("name", [](Property name) {
     std::cout << name.getValue<std::string>() << std::endl;
});

// Stop displaying the name of the object when it changes
object.unsubscribe("name", id);

The documentation for this class was generated from the following file:

Shape.h

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ Ptr

Member Enumeration Documentation

◆ Type

Constructor & Destructor Documentation

◆ Shape() [1/2]

◆ Shape() [2/2]

◆ ~Shape()

Member Function Documentation

◆ attachRigidBody()

◆ clone()

◆ draw()

◆ emit()

◆ emitChange()

◆ getClassName()

◆ getClassType()

◆ getFillColour()

◆ getGlobalBounds()

◆ getLocalBounds()

◆ getObjectId()

◆ getOrigin()

◆ getOutlineColour()

◆ getOutlineThickness()

◆ getPosition()

◆ getRigidBody()

◆ getRotation()

◆ getScale()

◆ getShapeType()

◆ getTag()

◆ hasRigidBody()

◆ move() [1/2]

◆ move() [2/2]

◆ onDestruction()

◆ onEvent()

◆ onPropertyChange() [1/2]

◆ onPropertyChange() [2/2]

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ removeDestructionListener()

◆ removeRigidBody()

◆ rotate()

◆ scale() [1/2]

◆ scale() [2/2]

◆ setFillColour()

◆ setOrigin() [1/2]

◆ setOrigin() [2/2]

◆ setOutlineColour()

◆ setOutlineThickness()

◆ setPosition() [1/2]

◆ setPosition() [2/2]

◆ setRotation()

◆ setScale() [1/2]

◆ setScale() [2/2]

◆ setTag()

◆ unsubscribe()
